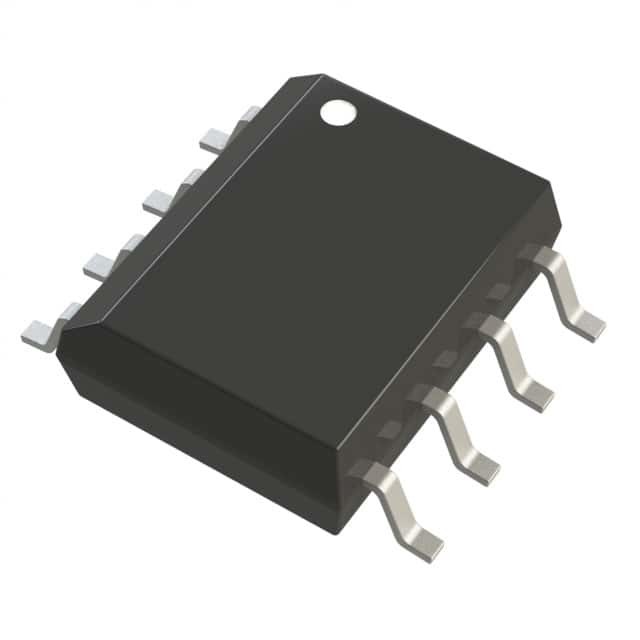

ADM690AARNZ-REEL IC SUPERVISOR 1 CHANNEL 8SOIC Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADM690AARNZ-REEL |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Battery Backup Circuit | Number Of Voltages Monitored | 1 |
|---|---|---|---|
| Voltage - Threshold | 4.65V | Output | Push-Pull, Totem Pole |
| Reset | Active Low | Reset Timeout | 140ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SOIC |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ADM690AARNZ-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709LARZ-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM692AARNZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM9690ARNZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM802LARNZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM692AARNZ-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM805LARNZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709LARZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709SARZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709MARZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM690AARNZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709RARZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709TARZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709MARZ-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709SARZ-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709TARZ-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM9690ARNZ-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM802LARNZ-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM805LARNZ-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM690AARN | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709LAR | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM690AARN-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM692AARN | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709MAR | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709MAR-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709RAR | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709SAR | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709TAR | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709TAR-REEL | IC SUPERVISOR MPU 3.08V RS 8SOIC | |
| ADM802LARN | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM802LARN-REEL | IC SUPERVISOR MPU 4.65V WD 8SOIC | |
| ADM802MARN | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM802MARN-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM805LARN | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM9690ARN | IC SUPERVISOR PS/WATCHDOG 8SOIC | |
| ADM9690ARN-REEL | IC SUPERVISOR PS/WATCHDOG 8SOIC | |
| ADM802MARNZ | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709RARZ-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM692AARN-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC | |
| ADM709LAR-REEL | IC SUPERVISOR 1 CHANNEL 8SOIC |
Product Description
Product Details
GENERAL DESCRIPTION
The ADM690A/ADM692A/ADM802L/M/ADM805L/M family of supervisory circuits offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include µP reset, backup battery switchover, watchdog timer, and power failure warning.FEATURES
Precision Supply Voltage Monitor
4.65 V ADM690A/ADM802L/ADM805L
4.40 V ADM692A/ADM802M/ADM805M
Reset Assertion Down to 1 V VCC
Reset Timeout—200 ms
Watchdog Timer—1.6 s
100 μA Quiescent Supply Current
Automatic Battery Backup Power Switching
Voltage Monitor for Power Fail
±2% Power Fail Accuracy on ADM802L/M
Space-Saving MicroSOIC Package (ADM690A)
APPLICATIONS
Microprocessor Systems
Computers
Controllers
Intelligent Instruments
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Supervisors |
| Series | ADM690A |
| Type | Battery Backup Circuit |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.019048 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Active High |
| Supplier-Device-Package | 8-SOIC |
| Output | Push-Pull, Totem Pole |
| Reset | Active Low |
| Voltage monitoring relays | 1 |
| Reset-Timeout | 140 ms Minimum |
| Voltage-Threshold | 4.65V |
| Pd-Power-Dissipation | 500 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 100 uA |
| Battery-Backup-Switching | Backup |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 4.75 V |
| Package-Case | SOIC-8 |
| Watchdog-Timers | Watchdog |
| Threshold-Voltage | 4.65 V |
| Input Monitoring | 1 Input |
| Manual-Reset | No Manual Reset |
| Chip-Enable-Signals | No Chip Enable |
| Power-Fail-Detection | Yes |
| Reset-Delay-Time | 280 ms |
| Overvoltage-Threshold | 4.75 V |
| Undervoltage-Threshold | 4.5 V |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| ADM690AARNZ Power Circuits |
μP Supervisor with Backup Battery Switchover, Watchdog Feature, Power Fail Warning, 4.65V Threshold Voltage, Active Low Reset | Analog Devices Inc | ADM690AARNZ-REEL vs ADM690AARNZ |
| MAX706TESA+T Power Circuits |
Power Supply Management Circuit, Fixed, 3 Channel, CMOS, PDSO8, 0.150 INCH, SOP-8 | Maxim Integrated Products | ADM690AARNZ-REEL vs MAX706TESA+T |
| MAX706SESA+ Power Circuits |
Power Supply Management Circuit, Fixed, 3 Channel, CMOS, PDSO8, 0.150 INCH, SOP-8 | Maxim Integrated Products | ADM690AARNZ-REEL vs MAX706SESA+ |
| MAX706SESA+T Power Circuits |
Power Supply Management Circuit, Fixed, 3 Channel, CMOS, PDSO8, 0.150 INCH, SOP-8 | Maxim Integrated Products | ADM690AARNZ-REEL vs MAX706SESA+T |
| MAX706RESA+T Power Circuits |
Power Supply Management Circuit, Fixed, 3 Channel, CMOS, PDSO8, 0.150 INCH, SOP-8 | Maxim Integrated Products | ADM690AARNZ-REEL vs MAX706RESA+T |
| ADM705ANZ Power Circuits |
Low Cost Microprocessor Supervisory Circuit | Analog Devices Inc | ADM690AARNZ-REEL vs ADM705ANZ |
| MAX706PESA+ Power Circuits |
Power Supply Management Circuit, Fixed, 3 Channel, CMOS, PDSO8, 0.150 INCH, SOP-8 | Maxim Integrated Products | ADM690AARNZ-REEL vs MAX706PESA+ |
| ADM690AANZ Power Circuits |
μP Supervisor with Backup Battery Switchover, Watchdog Feature, Power Fail Warning, 4.65V Threshold Voltage, Active Low Reset | Analog Devices Inc | ADM690AARNZ-REEL vs ADM690AANZ |
| MAX706TCSA+ Power Circuits |
Power Supply Management Circuit, Fixed, 3 Channel, CMOS, PDSO8, 0.150 INCH, SOP-8 | Maxim Integrated Products | ADM690AARNZ-REEL vs MAX706TCSA+ |
| ADM706ARZ Power Circuits |
3 V, Voltage Monitoring Microprocessor Supervisory Circuit | Analog Devices Inc | ADM690AARNZ-REEL vs ADM706ARZ |
Descriptions
Supervisor Push-Pull, Totem Pole 1 Channel 8-SOIC
Processor Supervisor 4.65V 1 Active Low/Push-Pull 8-Pin SOIC N T/R
Supervisory Circuits 5V CMOS Process I.C.
