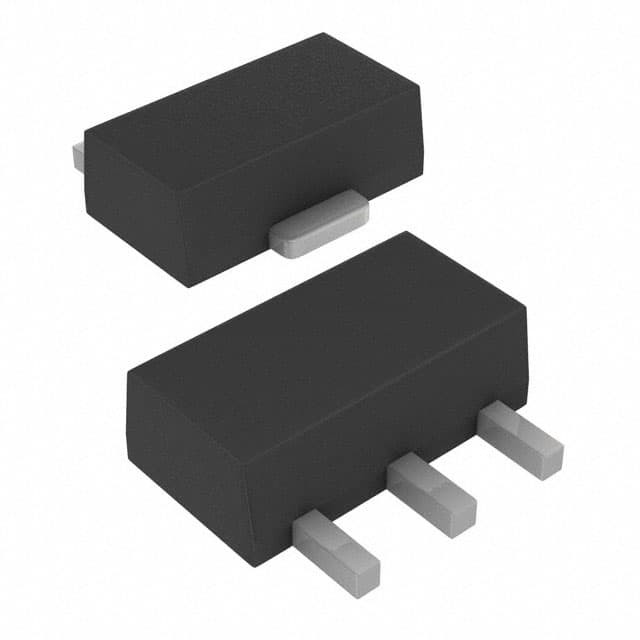

TC54VN4502EMB713 IC SUPERVISOR 1 CHANNEL SOT89-3 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | TC54VN4502EMB713 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Simple Reset/Power-On Reset | Number Of Voltages Monitored | 1 |
|---|---|---|---|
| Voltage - Threshold | 4.5V | Output | Open Drain Or Open Collector |
| Reset | Active Low | Reset Timeout | - |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | TO-243AA | Supplier Device Package | SOT-89-3 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TC54VN4502EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP112T-270E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP111T-315E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VC4302EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VC3002EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP111T-450E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP111T-240E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP112T-450E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VC2702EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VN2102EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VC4102EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP111T-270E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP111T-290E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP111T-300E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP111T-475E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP112T-195I/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP112T-240E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP112T-290E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP112T-300E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP112T-315E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| MCP112T-475E/MB | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VC4502EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VN2702EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VC2902EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VN4302EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VN2902EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VC4202EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VN1402EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VN3002EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VN4202EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VC2102EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VC1402EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VC2602EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VN2402EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VN3302EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 | |
| TC54VN4002EMB713 | IC SUPERVISOR 1 CHANNEL SOT89-3 |
Product Description
Product Details
GENERAL DESCRIPTION
The TC54 Series are CMOS voltage detectors, suited especially for battery-powered applications because of their extremely low 1µA operating current and small surface mount packaging. Each part is laser trimmed to the desired threshold voltage which can be specified from 2.1V to 6.0V, in 0.1V steps.
FEATURES
■ Precise Detection Thresholds .... Standard ± 2.0% Custom ± 1.0%■ Small Packages ........... SOT-23A-3, SOT-89, TO-92
■ Low Current Drain ..................................... Typ. 1µA
■ Wide Detection Range .......................... 2.1V to 6.0V
■ Wide Operating Voltage Range ............ 1.5V to 10V
APPLICATIONS
■ Battery Voltage Monitoring■ Microprocessor Reset
■ System Brownout Protection
■ Switching Circuit in Battery Backup
■ Level Discriminator
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Supervisors |
| Series | - |
| Type | Simple Reset/Power-On Reset |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.004603 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-243AA |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | SOT-89-3 |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Voltage monitoring relays | 1 |
| Reset-Timeout | - |
| Voltage-Threshold | 4.5V |
| Pd-Power-Dissipation | 500 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Supply-Voltage-Max | 10 V |
| Supply-Voltage-Min | 0.7 V |
| Package-Case | SOT-89-3 |
| Watchdog-Timers | No Watchdog |
| Threshold-Voltage | 1.1 V to 6 V |
| Input Monitoring | 1 Input |
| Manual-Reset | No Manual Reset |
| Overvoltage-Threshold | 4.59 V |
| Undervoltage-Threshold | 4.41 V |
Descriptions
Supervisor Open Drain or Open Collector 1 Channel SOT-89-3
CMOS voltage detectors especially well-suited for battery-powered applications
Supervisory Circuits 4.5vVtg Det 2% Tol.
