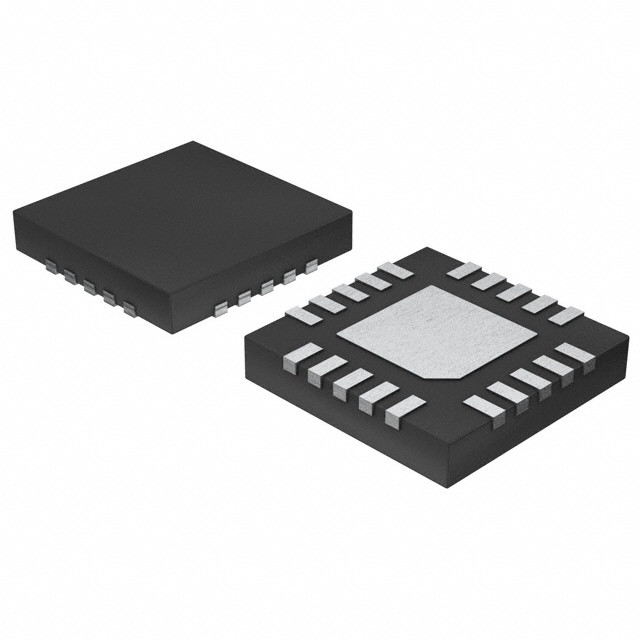

MAX16027TP+ IC SUPERVISOR 3 CHANNEL 20TQFN Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX16027TP+ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Sequencer | Number Of Voltages Monitored | 3 |
|---|---|---|---|
| Voltage - Threshold | 9 Selectable Threshold Combinations | Output | Open Drain Or Open Collector |
| Reset | Active Low | Reset Timeout | 140ms/Adjustable Minimum |
| Operating Temperature | -40°C ~ 125°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad | Supplier Device Package | 20-TQFN (4x4) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MAX16027TP+ | IC SUPERVISOR 3 CHANNEL 20TQFN | |
| MAX16008TP+ | IC SUPERVISOR 4 CHANNEL 20TQFN | |
| MAX16061ETP+ | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16028TP+ | IC SUPERVISOR 3 CHANNEL 20TQFN | |
| MAX16004ETP+ | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16004ATP+ | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16061ATP+ | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16042TP+ | IC SUPERVISOR 3 CHANNEL 20TQFN | |
| MAX16004CTP+ | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16007CTP+ | IC SUPERVISOR 8 CHANNEL 20TQFN | |
| MAX16008TP+T | IC SUPERVISOR 4 CHANNEL 20TQFN | |
| MAX16061ETP+T | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16028TP+T | IC SUPERVISOR 3 CHANNEL 20TQFN | |
| MAX16042TP+T | IC SUPERVISOR 3 CHANNEL 20TQFN | |
| MAX16004BTP+T | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16027TP+T | IC SUPERVISOR 3 CHANNEL 20TQFN | |
| MAX16004CTP+T | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16004ATP+T | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16004ETP+T | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16007ETP+T | IC SUPERVISOR 8 CHANNEL 20TQFN | |
| MAX16007CTP+T | IC SUPERVISOR 8 CHANNEL 20TQFN | |
| MAX16004BTP+ | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16007ETP+ | IC UP SUPERVISOR OCTAL 20-TQFN | |
| MAX16061BTP+T | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16061BTP+ | IC SUPERVISOR 6 CHANNEL 20TQFN | |
| MAX16007ATP+ | IC SUPERVISOR 8 CHANNEL 20TQFN | |
| MAX16007DTP+ | IC SUPERVISOR 8 CHANNEL 20TQFN | |
| MAX16007DTP+T | IC SUPERVISOR 8 CHANNEL 20TQFN | |
| MAX6794TPSD2+ | IC REG LIN W/SPR VSR 20-TQFN | |
| MAX16004DTP+ | IC UP SUPERVISOR HEX 20-TQFN | |
| MAX16007BTP+ | IC UP SUPERVISOR OCTAL 20-TQFN | |
| MAX6794TPSD2+T | IC REG LINEAR DUAL 20-TQFN |
Product Description
Product Details
[MaximIC]
General Description
The MAX16025–MAX16030 are dual-/triple-/quad-voltage monitors and sequencers that are offered in a small TQFN package. These devices offer enormous design flexibility as they allow fixed and adjustable thresholds to be selected through logic inputs and provide sequence timing through small external capacitors. These versatile devices are ideal for use in a wide variety of multivoltage applications.
Features
♦ 2.2V to 28V Operating Voltage Range♦ Fixed Thresholds for 3.3V, 2.5V, 1.8V, 1.5V, and 1.2V Systems
♦ 1.5% Accurate Adjustable Threshold Monitors Voltages Down to 0.5V
♦ 2.7% Accurate Fixed Thresholds Over Temperature
♦ Fixed (140ms min)/Capacitor-Adjustable Delay Timing
♦ Independent Open-Drain/Push-Pull Outputs
♦ Enable Inputs for Each Monitored Voltage
♦ 9 Logic-Selectable Threshold Options
♦ Manual Reset and Tolerance Select (5%/10%) Inputs
♦ Small, 4mm x 4mm TQFN Package
♦ Fully Specified from -40°C to +125°C
Applications
Multivoltage SystemsDC-DC Supplies
Servers/Workstations
Storage Systems
Networking/Telecommunication Equipment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | Supervisors |
| Series | MAX16027 |
| Type | Sequencer |
| Packaging | Tube Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 20-WFQFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Active Low Open Drain |
| Supplier-Device-Package | 20-TQFN (4x4) |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Voltage monitoring relays | 3 |
| Reset-Timeout | 140 ms/Adjustable Minimum |
| Voltage-Threshold | 9 Selectable Threshold Combinations |
| Pd-Power-Dissipation | 2051 mW |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 52 uA |
| Battery-Backup-Switching | No Backup |
| Part-#-Aliases | MAX16027 |
| Supply-Voltage-Max | 28 V |
| Supply-Voltage-Min | 2.2 V |
| Package-Case | TQFN-20 |
| Watchdog-Timers | No Watchdog |
| Input Monitoring | 3 Input |
| Manual-Reset | Manual Reset |
| Overvoltage-Threshold | Adjustable |
| Undervoltage-Threshold | Adjustable |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MAX16029TG+ Power Circuits |
Power Supply Management Circuit, Adjustable, 4 Channel, +4VV, BICMOS, 4 X 4 MM, 0.80 MM HEIGHT, LEAD FREE, TQFN-24 | Maxim Integrated Products | MAX16027TP+ vs MAX16029TG+ |
| MAX16028TP+T Power Circuits |
Power Supply Management Circuit, Adjustable, 3 Channel, +3VV, BICMOS, 4 X 4 MM, 0.80 MM HEIGHT, LEAD FREE, TQFN-24 | Maxim Integrated Products | MAX16027TP+ vs MAX16028TP+T |
| MAX16027TP+T Power Circuits |
Power Supply Management Circuit, Adjustable, 3 Channel, +3VV, BICMOS, 4 X 4 MM, 0.80 MM HEIGHT, LEAD FREE, TQFN-24 | Maxim Integrated Products | MAX16027TP+ vs MAX16027TP+T |
| MAX16029TG+T Power Circuits |
Power Supply Management Circuit, Adjustable, 4 Channel, +4VV, BICMOS, 4 X 4 MM, 0.80 MM HEIGHT, LEAD FREE, TQFN-24 | Maxim Integrated Products | MAX16027TP+ vs MAX16029TG+T |
| MAX16028TP+ Power Circuits |
Power Supply Management Circuit, Adjustable, 3 Channel, +3VV, BICMOS, 4 X 4 MM, 0.80 MM HEIGHT, TQFN-24 | Maxim Integrated Products | MAX16027TP+ vs MAX16028TP+ |
Descriptions
Supervisor Open Drain or Open Collector 3 Channel 20-TQFN (4x4)
Supervisory Circuits Dual/Triple/Quad Sequencng/Suprvisory
