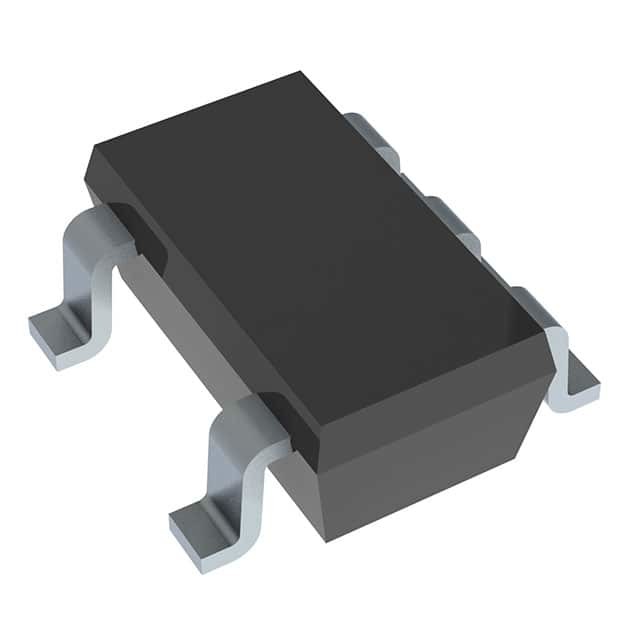

CAT823RTDI-GT3 IC SUPERVISOR 1 CHANNEL TSOT23-5 onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | CAT823RTDI-GT3 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Simple Reset/Power-On Reset | Number Of Voltages Monitored | 1 |
|---|---|---|---|
| Voltage - Threshold | 2.63V | Output | Push-Pull, Totem Pole |
| Reset | Active Low | Reset Timeout | 140ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | Supplier Device Package | TSOT-23-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| CAT823RTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT823ZTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT823YTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT823STDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT824MTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT824UTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT823TTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT808NTDI-27GT3 | IC VOLT DETECT LP PREC TSOT23-5 | |
| CAT808NTDI-32GT3 | IC VOLT DETECT LP PREC TSOT23-5 | |
| CAT824LTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT824RTDI-GT3 | IC SUPERVISOR MPU 2.63V TSOT23-5 | |
| CAT824STDI-GT3 | IC SUPERVISOR MPU 2.93V TSOT23-5 | |
| CAT824TTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT824YTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT824ZTDI-GT3 | IC SUPERVISOR MPU 2.32V TSOT23-5 | |
| CAT825LTDI-GT3 | IC SUPERVISOR MPU 4.63V TSOT23-5 | |
| CAT825MTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT825RTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT825STDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT825TTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT825YTDI-GT3 | IC SUPERVISOR MPU 2.19V TSOT23-5 | |
| CAT825ZTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT823LTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT823TDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 | |
| CAT823MTDI-GT3 | IC SUPERVISOR 1 CHANNEL TSOT23-5 |
Product Description
Product Details
DESCRIPTION
The CAT823, CAT824, and CAT825 provide basic reset and monitoring functions for the electronic systems. Each device monitors the system voltage and maintains a reset output until that voltage reaches the device’s specified trip value and then maintains the reset output active condition until the device’s internal timer, after a minimum timer of 140ms; to allow the systems power supply to stabilize.
FEATURES
Automatically restarts microprocessor after Power failureMonitors pushbutton for external override
Accurate under voltage system monitoring
Brownout detection system reset for use with 3.0, 3.3, and 5.0 volt systems
Pin and function compatible with the MAX823/24/25 products
Operating Range from -40°C to +85°C
Available in TSOT-23 5-lead and SC-70 packages
APPLICATIONS
Microprocessor and Microcontroller based systemsIntelligent Instruments
Control Systems
Critical µP Monitors
Portable Equipment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ON Semiconductor |
| Product Category | Supervisors |
| Series | CAT823 |
| Type | Simple Reset/Power-On Reset |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.000222 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | SOT-23-5 Thin, TSOT-23-5 |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Active Low Push-Pull |
| Supplier-Device-Package | TSOT-23-5 |
| Output | Push-Pull, Totem Pole |
| Reset | Active Low |
| Voltage monitoring relays | 1 |
| Reset-Timeout | 140 ms Minimum |
| Voltage-Threshold | 2.63V |
| Pd-Power-Dissipation | 571 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 4 uA |
| Battery-Backup-Switching | No Backup |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 1.2 V |
| Package-Case | TSOT-23-5 |
| Watchdog-Timers | Watchdog |
| Threshold-Voltage | 3 V 3.3 V 5 V |
| Input Monitoring | 1 Input |
| Manual-Reset | Manual Reset |
| Overvoltage-Threshold | 2.7 V |
| Undervoltage-Threshold | 2.55 V |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| CAT823RTDI-GT3 Power Circuits |
Power Supply Management Circuit, Fixed, 1 Channel, PDSO5, ROHS COMPLIANT, MO-193, TSOT-23, 5 PIN | Catalyst Semiconductor | CAT823RTDI-GT3 vs CAT823RTDI-GT3 |
| CAT823RTDI-G Power Circuits |
1-CHANNEL POWER SUPPLY MANAGEMENT CKT, PDSO5, ROHS COMPLIANT AND HALOGEN FREE, MO-193, TSOT-23, 5 PIN | ON Semiconductor | CAT823RTDI-GT3 vs CAT823RTDI-G |
Descriptions
Supervisor Push-Pull, Totem Pole 1 Channel TSOT-23-5
Processor Supervisor 2.63V 1 Active Low/Push-Pull 5-Pin TSOT-23 T/R
Supervisory Circuits act low MR/WD
