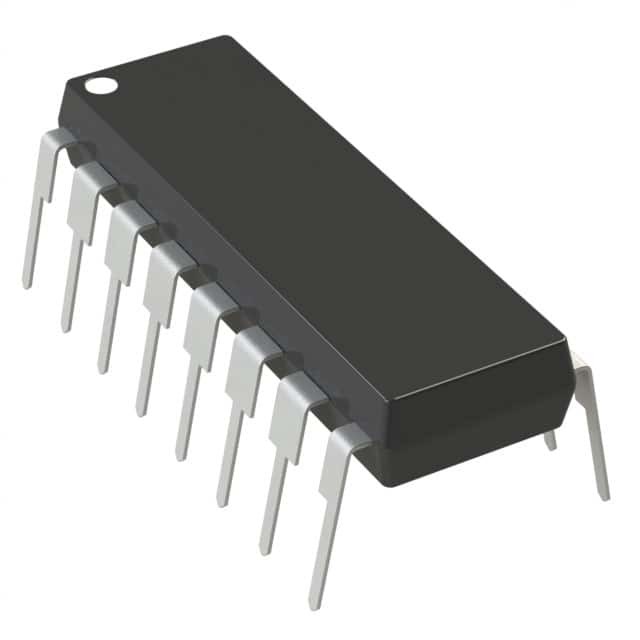

ADM691AANZ IC SUPERVISOR 1 CHANNEL 16DIP Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADM691AANZ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Battery Backup Circuit | Number Of Voltages Monitored | 1 |
|---|---|---|---|
| Voltage - Threshold | 4.65V | Output | Open Drain, Push-Pull |
| Reset | Active High/Active Low | Reset Timeout | 140ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) | Supplier Device Package | 16-PDIP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ADM691AANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM693AANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM695ANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM697ANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM691ANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM693ANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM8691ANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM691AAN | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM691AN | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM693AN | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM695AN | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM693AAN | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM696AN | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM697AN | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM8691AN | IC SUPERVSR MPU 4.65V ADJ 16DIP | |
| ADM8693AN | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM8694AN | IC SUPERVISOR MPU 4.65V 16DIP | |
| ADM8696AN | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM8697AN | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM8697ANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM8696ANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM8694ANZ | IC SUPERVISOR MPU 4.65V 16DIP | |
| ADM8693ANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM696ANZ | IC SUPERVISOR 1 CHANNEL 16DIP | |
| ADM800MANZ | IC SUPERVISOR 1 CHANNEL 16DIP |
Product Description
Product Details
GENERAL DESCRIPTION
The ADM691A/ADM693A/ADM800L/ADM800M family of supervisory circuits offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include µP reset, backup-battery switchover, watchdog timer, CMOS RAM write protection, and power-failure warning. The family of products provides an upgrade for the MAX691A/93A/800M family of products.FEATURES
Low Power Consumption:
Precision Voltage Monitor
±2% Tolerance on ADM800L/M
Reset Time Delay—200 ms, or Adjustable
1 μA Standby Current
Automatic Battery Backup Power Switching
Fast Onboard Gating of Chip Enable Signals
Also Available in TSSOP Package (ADM691A)
APPLICATIONS
Microprocessor Systems
Computers
Controllers
Intelligent Instruments
Automotive Systems
Critical mP Power Monitoring
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Supervisors |
| Series | ADM691A |
| Type | Battery Backup Circuit |
| Packaging | Tube |
| Unit-Weight | 0.057419 oz |
| Mounting-Style | Through Hole |
| Package-Case | 16-DIP (0.300", 7.62mm) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Through Hole |
| Output-Type | Open Drain Push-Pull |
| Supplier-Device-Package | 16-PDIP |
| Output | Open Drain, Push-Pull |
| Reset | Active High/Active Low |
| Voltage monitoring relays | 1 |
| Reset-Timeout | 140 ms Minimum |
| Voltage-Threshold | 4.65V |
| Pd-Power-Dissipation | 842 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 100 uA |
| Battery-Backup-Switching | Backup |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 4.75 V |
| Package-Case | PDIP-16 |
| Watchdog-Timers | Watchdog |
| Threshold-Voltage | 4.65 V |
| Input Monitoring | 1 Input |
| Manual-Reset | No Manual Reset |
| Chip-Enable-Signals | Chip Enable |
| Power-Fail-Detection | Yes |
| Reset-Delay-Time | 280 ms |
| Overvoltage-Threshold | 4.75 V |
| Undervoltage-Threshold | 4.5 V |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| ADM691ANZ Power Circuits |
Microprocessor Supervisor with Backup Battery Switchover, 50 ms Nominal Adjustable Reset Period, Adjustable Watchdog Period, Chip Enable Signals, 4.65V Threshold Voltage, Watchdog, Backup Battery and Low VCC Status O/Ps and 100mA Output Current | Analog Devices Inc | ADM691AANZ vs ADM691ANZ |
| ADM691AN Power Circuits |
1-CHANNEL POWER SUPPLY MANAGEMENT CKT, PDIP16, PLASTIC, DIP-16 | Rochester Electronics LLC | ADM691AANZ vs ADM691AN |
| ADM691AAN Power Circuits |
1-CHANNEL POWER SUPPLY MANAGEMENT CKT, PDIP16, PLASTIC, DIP-16 | Rochester Electronics LLC | ADM691AANZ vs ADM691AAN |
Descriptions
Supervisor Open Drain, Push-Pull 1 Channel 16-PDIP
Processor Supervisor 4.65V 1 Active High/Active Low/Open Drain/Push-Pull Automotive 16-Pin PDIP Tube
Supervisory Circuits IC 5V MPU Battery Mgmt
