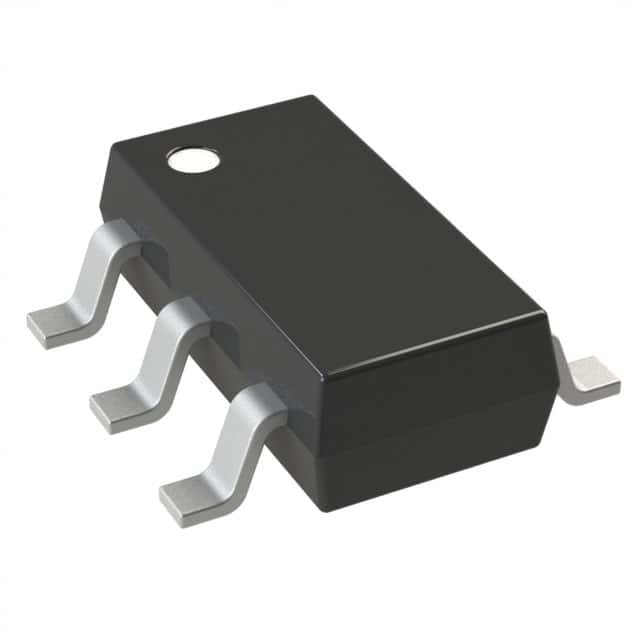

LTC2903CS6-D1#TRMPBF IC SUPERVISOR 4 CHANNEL TSOT23-6 Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LTC2903CS6-D1#TRMPBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Multi-Voltage Supervisor | Number Of Voltages Monitored | 4 |
|---|---|---|---|
| Voltage - Threshold | 3.086V, Adj, Adj, Adj | Output | Open Drain Or Open Collector |
| Reset | Active Low | Reset Timeout | 140ms Minimum |
| Operating Temperature | 0°C ~ 70°C (TA) | Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | Supplier Device Package | TSOT-23-6 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LTC2903CS6-D1#TRMPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903IS6-D1#TRMPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903CS6-A1#TRMPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903IS6-E1#TRMPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903CS6-D1#TRPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903CS6-E1#TRMPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903IS6-D1#TRPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903IS6-A1#TRMPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903CS6-C1#TRMPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903CS6-B1#TRPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903CS6-A1#TRPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903CS6-E1#TRPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903CS6-C1#TRPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903IS6-E1#TRPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903IS6-A1#TRPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903IS6-B1#TRPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903IS6-C1#TRPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903CS6-B1#TRMPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903IS6-B1#TRMPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 | |
| LTC2903IS6-C1#TRMPBF | IC SUPERVISOR 4 CHANNEL TSOT23-6 |
Product Description
Product Details
DESCRIPTION
The LTC®2903-1 monitors up to four supply voltages. The common reset output remains low until all four inputs have been in compliance for 200ms. Voltage thresholds maintain ±1.5% accuracy over temperature (with respect to the monitored voltage). The LTC2903-1 features an open-drain RST output with a weak internal pullup.
FEATURES
■ Ultralow Voltage Reset: VCC = 0.5V Guaranteed■ Monitor Four Inputs Simultaneously
3.3V, 2.5V, 1.8V, ADJ (LTC2903-A1)
5V, 3.3V, 2.5V, 1.8V (LTC2903-B1)
5V, 3.3V, 1.8V, –5.2V (LTC2903-C1)
■ Guaranteed Threshold Accuracy: ±1.5% of Monitored Voltage over Temperature
■ 10% Undervoltage Monitoring
■ Low Supply Current: 20µA Typical
■ 200ms Reset Time Delay
■ Active Low Open-Drain RST Output
■ Power Supply Glitch Immunity
■ Low Profile (1mm) SOT-23 (ThinSOTTM) Package
APPLICATIONS
■ Multivoltage Systems■ Optical Networking Systems
■ Cell Phone Base Stations
■ Network Servers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Product Category | Supervisors |
| Series | - |
| Type | Multi-Voltage Supervisor |
| Packaging | Alternate Packaging |
| Package-Case | SOT-23-6 Thin, TSOT-23-6 |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | TSOT-23-6 |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Voltage monitoring relays | 4 |
| Reset-Timeout | 140 ms Minimum |
| Voltage-Threshold | 3.086V, Adj, Adj, Adj |
Descriptions
Supervisor Open Drain or Open Collector 4 Channel TSOT-23-6
LTC2903-1 - Precision Quad Supply Monitor in 6-Lead SOT-23
