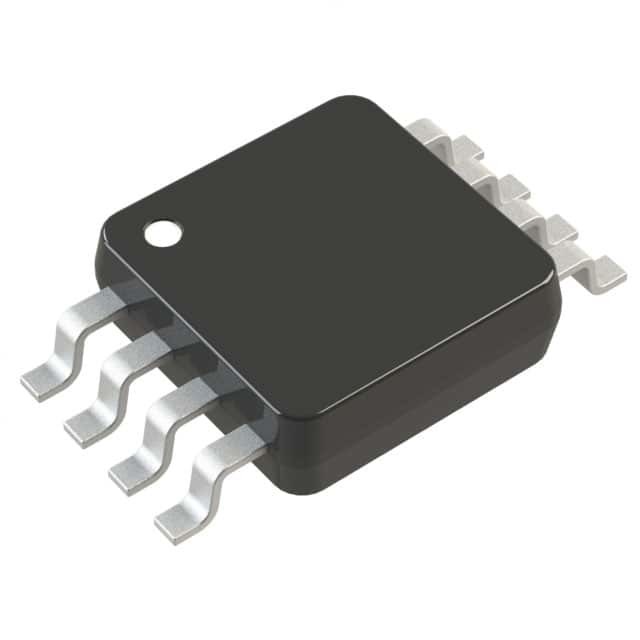

LTC1726EMS8-5#PBF IC SUPERVISOR 3 CHANNEL 8MSOP Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LTC1726EMS8-5#PBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Multi-Voltage Supervisor | Number Of Voltages Monitored | 3 |
|---|---|---|---|
| Voltage - Threshold | 3.085V, 4.675V, Adj | Output | Open Drain Or Open Collector |
| Reset | Active Low | Reset Timeout | Adjustable/Selectable |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Supplier Device Package | 8-MSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LTC1726EMS8-5#PBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1326CMS8#PBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1726HMS8-5#PBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1326IMS8#PBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1326CMS8#TRPBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1727EMS8-2.5#PBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1726EMS8-2.5#PBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1326CMS8-2.5#PBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1536CMS8#PBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1326IMS8-2.5#PBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1726EMS8-5#TRPBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1726EMS8-2.5#TRPBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1326CMS8-2.5#TRPBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1727EMS8-5#PBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1727EMS8-2.5#TRPBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1727EMS8-5#TRPBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1726HMS8-5#TRPBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1326IMS8-2.5#TRPBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1326IMS8#TRPBF | IC SUPERVISOR 3 CHANNEL 8MSOP | |
| LTC1536CMS8#TRPBF | IC SUPERVISOR 3 CHANNEL 8MSOP |
Product Description
Product Details
DESCRIPTION
The LTC®1726 is a triple supply monitor and microprocessor supervisory circuit with adjustable reset and watchdog functions intended for systems with multiple supply voltages. The part has a common open-drain reset output with an adjustable delay. The reset and watchdog time-out periods are both adjustable using external capacitors.
FEATURES
■ Monitors Three Inputs SimultaneouslyLTC1726-5: 5V, 3.3V and ADJ
LTC1726-2.5: 2.5V, 3.3V and ADJ
■ ±1.5% Threshold Accuracy Over Temperature
■ Low Supply Current: 16µA Typ
■ Adjustable Reset Timeout
■ Adjustable Watchdog Timeout
■ Active Low Open-Drain Reset Output
■ Power Supply Glitch Immunity
■ Guaranteed RESET for VCC3 ≥ 1V or VCC25/VCC5 ≥ 1V
■ MS8 and SO-8 Packages
APPLICATIONS
■ Desktop Computers■ Notebook Computers
■ Intelligent Instruments
■ Portable Battery-Powered Equipment
■ Network Servers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Product Category | Supervisors |
| Series | - |
| Type | Multi-Voltage Supervisor |
| Packaging | Tube Alternate Packaging |
| Package-Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 8-MSOP |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Voltage monitoring relays | 3 |
| Reset-Timeout | Adjustable/Selectable |
| Voltage-Threshold | 3.085V, 4.675V, Adj |
Descriptions
Supervisor Open Drain or Open Collector 3 Channel 8-MSOP
